Avaya provides High Definition (HD) video conferencing room systems that incorporate the latest state-of-the- art video technology with capabilities mandatory for today’s room system deployments.

Avaya Huddle Cameras HC020 / HC050 are the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras.

Users can enjoy full control directly from XT Room System through Remote Control, Scopia Control, Web Interface, APIs and so on.

The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment

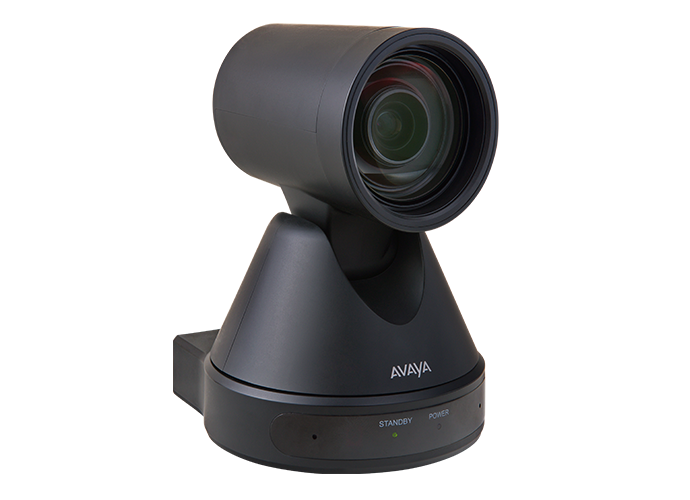

Avaya Huddle Camera HC050

Suitable as first or second camera of all the products of XT Series, or as laptop camera for the Avaya Equinox® Client. It is a full HD Pan Tilt Zoom USB camera, with 1080p30 video signal and optical zoom 12x. A perfect solution for small and medium rooms. There is an option to include

1-way POD microphone for small rooms and 3-way POD microphone for medium rooms.


Camera Model	HC020 1080p@30	HC050 12x 1080p30
Image device	4K@30/25 CMOS 1/2.5’’	CMOS 1/2.7’’
Video Formats with laptop	4K@30/25 1080p60/50/30/25	1080p30/25 720p30/25 1080p60 / 720p60
Video Formats with XT	1080p30 / 720p30	1080p30 / 720p30
Video signal	Compressed (H.264) on USB or uncompressed on HDMI	Compressed (H.264) on USB
Focal Length	f=2.8mm	f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Min object distance (wide)	500mm	100mm
Min illumination	0.05 Lux @ (F1.8, AGC ON)	0.5 Lux @ (F1.8, AGC ON)
HFoV	104° (up to 123°)	72.5°
VFoV	68°	43°
Optical Zoom (*)	NA	12x
Digital Zoom (*)	8x	16x
Pan Range	ePTZ (**)	+/-170°
Tilt Range	ePTZ (**)	+/- 30°
Serial Control	Via USB	Serial In – Out - USB
Ceiling Mount	Supported	Supported
Camera mount	Tripod screw hole (1/4-20 UNC)	Tripod screw hole (1/4-20 UNC)
Weight	0.34Kg	0.91Kg
Dimensions w/h/d	194mm x 34mm x 42mm (without bracket)	128.5mm x 118mm x 156.2mm
Current consumption (max)	0.6A	1A
Use with Equinox Client	Yes	Yes
Video configurations	White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level
Voltage Range	5V(USB)	DC 12V
IR repeater as TTL signal	Not available	Not available
Camera Output	USB 3.0 - HDMI	USB 3.0
Microphone	Included, frequency response 50Hz - 8KHz, 3m radius omni (6m diameter), coverage 360°	Included, frequency response 50Hz - 8KHz, 3m radius omni (6m diameter), coverage 360°
Presets	122 (for all connected cameras, directly on XT codec)
Far end camera control	Through XT codec (H.224, H.281)
Interoperability	The HC020 and HC050 cameras are compatible with Avaya Conferencing clients such as Spaces and Workplace and with third party conferencing clients such as Microsoft© Skype for Business, Microsoft© Teams, Zoom©, BlueJeans©.
