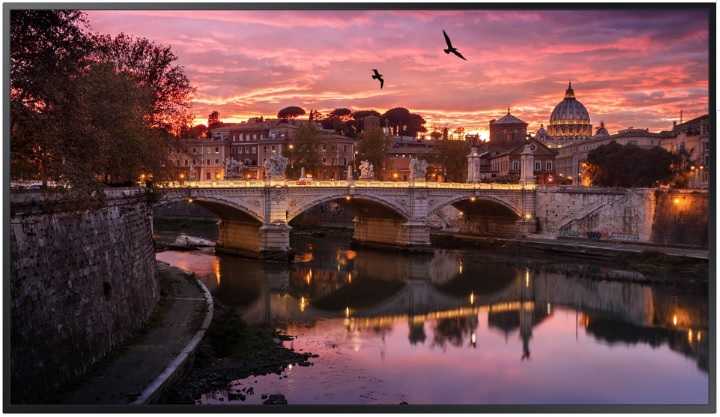

MÀN HÌNH SAM SUNG 55 ICH DIGITAL SIGNAGE

Giá: Liên hệ

Màn hình Sam Sung Smart Signage 55'' Display:
Display any content in ultra-high definition with incredibly rich color on slim, efficient signage:

Specs

Diagonal Size 55
Type Edge LED BLU
Resolution 3840*2160 (4K UHD)
Pixel Pitch(mm) 0.105 x 0.315
Active Display Area(mm) 1209.6(H) x 680.4(V)
Brightness(Typ.) 500 nit
Contrast Ratio 4000:1
Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms(Typ.)
Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut 92% (DCI-P3, CIE 1976)
Operation Hour 24/7
Haze 25%
Display
Dynamic C/R MEGA
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 594MHz
Sound
Speaker Type Built in Speaker(10W + 10W)
Connectivity
Input
RGB DVI-D, Display Port 1.2 (1)
Video HDMI 2.0 (2)
HDCP HDCP2.2
Audio Stereo mini Jack, DVI, HDMI
USB USB 2.0 x 2
Output
RGB HDMI 2.0 (Loop-out)
Audio Stereo mini Jack
External Control RS232C(in/out) thru stereo jack, RJ45
External Sensor IR
Power
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h] 143
Typical[W/h] 108
Rating[W/h] 130
BTU(Max) 487.6
Sleep mode 0.5
Mechanical Specification
Dimension (mm)
Set 1235.1 x 707.9 x 46.3
Package 1402 x 858 x 163
Dimension (mm)
Set 18.1
Package 23.6
Stand Type Foot Stand (Optional)
Bezel Width (mm) 9.2mm(U/L/R), 11.2mm(B)
Operation
Operating Temperature 0  ℃  ~   40   ℃ Humidity 10  %  ~   80   %
Feature
Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player Processor Coretex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed 1.7GHz
Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit
Graphics Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports USB 2.0
Operating System Tizen 4.0 (VDLinux)
Certification
Safety 60950-1
EMC Class B
Security 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Accessory
Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand STN-L4355F
Mount WMN4070SE
Specialty CML400XK
Media Player
Media Player N/A

Xuất xứ: Việt Nam

Bảo hành: 36 tháng
